Mahendra JR 3+ 1 HP Single Phase Monoblock Pump
Original price was: ₹99,999.00.₹88,888.00Current price is: ₹88,888.00.
Mahendra JR 3+ 1 HP Single Phase Monoblock Pump
A reliable monoblock pump designed for domestic, agricultural
and farm water pumping requirements, featuring a 1 HP motor,
2880 RPM speed and 16–24 metre head range.
Power
1 HP
Phase
Single Phase
Head Range
16–24 m
Warranty
1 Year
Product Overview

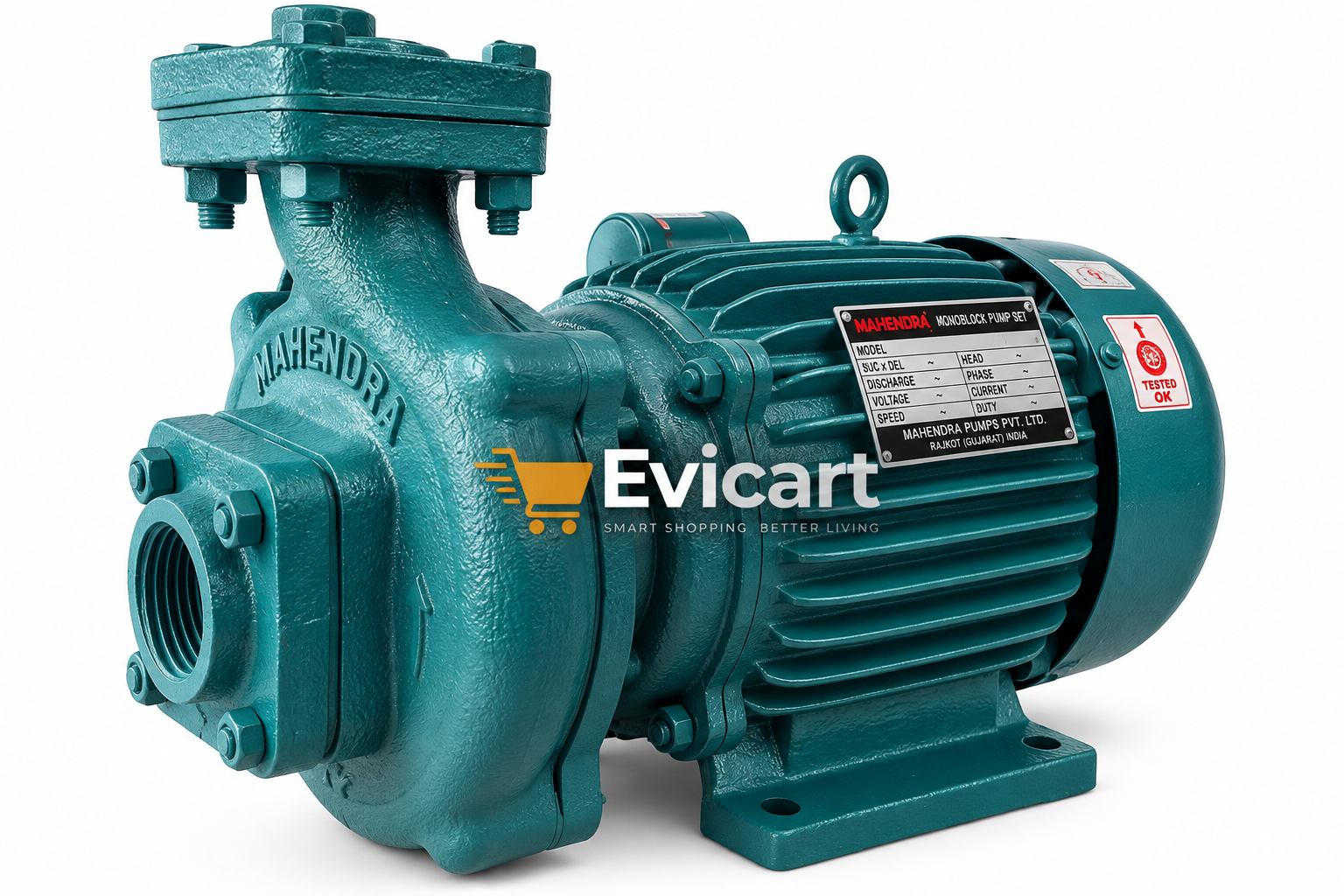

The Mahendra JR 3+ 1 HP Single Phase Monoblock Pump is designed
for water pumping applications where a dependable single-phase
motor is required. With a 220V supply requirement, it can be
used with a suitable domestic electrical connection.
The pump features a heavy-duty cast iron body designed for
robust everyday operation. Its 1 HP motor operates at
2880 RPM and is suitable for agricultural, farm and field
water pumping requirements.
With a 16–24 metre head range, approximately equivalent to
50–80 feet, the pump can be considered for different water
lifting and pumping requirements depending on installation
conditions.
Key Features
1 HP Motor
1 HP / 0.75 kW motor suitable for regular water pumping
requirements.
Single Phase
Designed for single-phase electrical connections with
220V supply.
Cast Iron Body
Robust cast iron construction for demanding pumping
applications.
2880 RPM
High-speed motor performance for efficient pumping
operation.
25 µF Capacitor
Equipped with a 25 µF capacitor as specified for the
motor.
S1 Duty
Designed with S1 duty classification as specified in the
product details.
Head Range
16–24 m
Head Range
The specified operating head range is 16 to 24 metres,
depending on installation and operating conditions.
50–80 ft
Approx. Head
The approximate equivalent head range is 50 to 80 feet.
Suitable Applications
🏠
Domestic Use
Suitable for compatible domestic water pumping
applications.
🌾
Agriculture
Suitable for agricultural water pumping requirements.
🚜
Farm & Field
Useful for farm, field and other suitable water pumping
applications.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Mahendra Pumps |
| Model | JR 3+ |
| Motor Type | Single Phase Monoblock |
| Power | 1 HP / 0.75 kW |
| Voltage | 220 V |
| Frequency | 50 Hz |
| Speed | 2880 RPM |
| Maximum Current | 6.75 A |
| Capacitor | 25 µF |
| Pipe Size | 32 × 25 mm |
| Head Range | 16 – 24 m |
| Approx. Head | 50 – 80 ft |
| Phase | Single Phase |
| Duty | S1 |
| Insulation Class | B |
| Overall Efficiency | 39% |
| Body Material | Cast Iron |
| Warranty | 1 Year |
| Application | Agriculture / Farm / Field Water Pumping |
Warranty & Service
1 Year Warranty
This product comes with a 1 Year warranty as provided in
the supplied product details.
Proper Installation
Proper installation, suitable operating conditions and
regular maintenance can help support reliable long-term
operation.
Important Usage Note
Pump life depends on installation quality, water conditions,
operating hours, electrical supply, maintenance and usage.
Although similar pumps may provide many years of service,
including potentially 15–20 years under suitable conditions,
actual service life cannot be guaranteed and may vary
considerably.
Why Buy From Our Online Store?
Sagar Electrical – Online Catalogue / Evicart
Our online catalogue gives local customers an additional
option to explore products online before placing an order.
You can check product information, specifications and pricing
conveniently from the website.
Customers can also connect with us locally whenever support
or product-related assistance is required.
Frequently Asked Questions
Is the Mahendra JR 3+ suitable for domestic use?
Yes. The pump is a single-phase 220V monoblock pump
and can be considered for suitable domestic water
pumping applications, subject to proper installation
and electrical requirements.
What is the motor power of this pump?
The Mahendra JR 3+ has a 1 HP motor, equivalent to
approximately 0.75 kW.
Is this pump single phase or three phase?
It is a Single Phase Monoblock Pump designed for a
220V electrical supply.
What is the head range of the pump?
The specified head range is 16–24 metres, which is
approximately 50–80 feet.
What pipe size does this pump use?
The specified pipe size is 32 × 25 mm.
What material is the pump body made from?
The pump has a Cast Iron body designed for robust
operation.
What is the warranty period?
The supplied product details specify a 1 Year
warranty.
How long can this pump last?
Actual service life depends on installation,
electrical conditions, operating hours, water
conditions and maintenance. While properly maintained
pumps can operate for many years, a specific lifespan
such as 15–20 years should not be treated as a
guaranteed service life.
Is this pump suitable for agricultural use?
Yes. The supplied specifications list Agriculture,
Farm and Field Water Pumping as applications.
What should I check before installing the pump?
Check the required voltage, pipe size, head
requirement, installation conditions and electrical
protection. Professional installation is recommended
to ensure the pump is used correctly.
